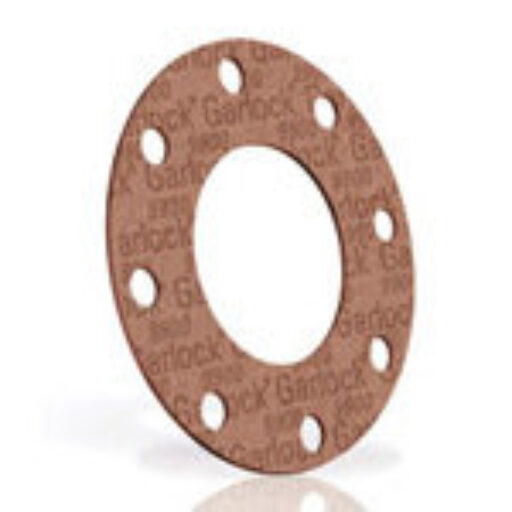

Style 9800
Product Code: Style-9800
Technical Data Sheet
High Temperature Gasketing
Carbon Fibers with a SBR Binder
Benefits
Heat and pressure resistant
- Carbon fiber gasketing excels in harshest conditions- intense heat, high pressure, saturated steam* and hot oils
- Laboratory tested for fire safety
Tighter seal
- Maintains effective seal during pressure and temperature fluctuations
- Superior torque retention lowers leakage rates and reduces maintenance time
Convenient
- Flexible material is easy to handle and cut
- Sheet sizes to 150″ x 150″ (3.8 m x 3.8 m) minimize waste and inventory costs
Media
- Saturated steam*
- Water
- Inert gases
- Mild acids
- Mild alkalies
*Minimum recommended assembly stress = 4,800psi. Preferred assembly stress = 6,000-10,000psi. Gasket thickness of 1/16″ strongly preferred. Retorque the bolts/studs prior to pressurizing the assembly. For saturated steam above 150psig or superheated steam, consult Hanna Rubber Company.
Additional information
| Min. Temperature | -100°F (-73°C) |
|---|---|
| Continuous Max | +650°F (+343°C) |
| Max Temperature | +900°F (+482°C) |
| Max Pressure | 2000 psig (138 bar) |
| Maximum PxT 1/16 | 700,000 (°F x PSIG) |
| Maximum PxT 1/8 | 350,000 (°F x PSIG) |
| ASTM F104 | F712402A9B3E34K8L302M9(4) |
