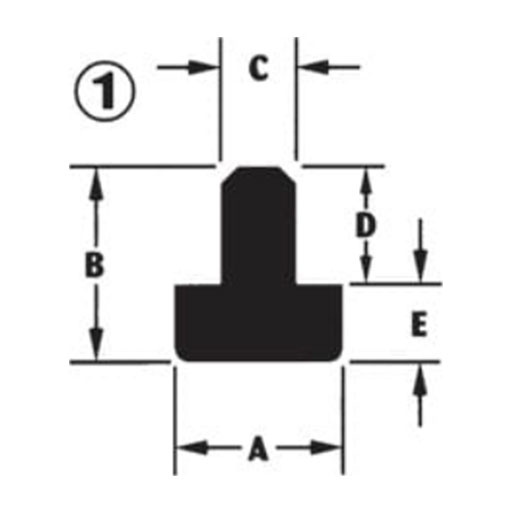

Bumper Model 1
| Part No. | A | B | C | D | E | |||||
| in | mm | in | mm | in | mm | in | mm | in | mm | |
| 6136 | 3/8 | 9.5 | 0.275 | 7 | 3/16 | 4.8 | 1/4 | 6.4 | 0.025 | 0.6 |
| 6135 | 1/2 | 12.7 | 1/4 | 6.4 | 3/16 | 4.8 | 7/32 | 5.6 | 1/32 | 0.8 |
| 602 | 3/16 | 4.8 | 0.134 | 3.4 | 1/8 | 3.2 | 3/32 | 2.4 | 0.04 | 1 |
| 2976 | 3/8 | 9.5 | 5/16 | 7.9 | 3/16 | 4.8 | 1/4 | 6.4 | 1/16 | 1.6 |
| 6012 | 1/4 | 6.4 | 3/16 | 4.8 | 11/64 | 4.4 | 1/8 | 3.2 | 1/16 | 1.6 |
| 6053 | 3/8 | 9.5 | 15/64 | 6 | 15/64 | 6 | 11/64 | 4.4 | 1/16 | 1.6 |
| 6072 | 1/2 | 12.7 | 5/16 | 7.9 | 3/8 | 9.5 | 1/4 | 6.4 | 1/16 | 1.6 |
| 6086 | 15/32 | 11.9 | 7/16 | 11.1 | 13/8 | 9.5 | 3/8 | 9.5 | 1/16 | 1.6 |
| 2645 | 15/64 | 6 | 9/32 | 7.1 | 0.14 | 3.6 | 7/32 | 5.6 | 1/16 | 1.6 |
| 6178 | 1/2 | 12.7 | 0.195 | 5 | 0.18 | 4.6 | 0.13 | 3.3 | 0.065 | 1.7 |
| 6186 | 15/32 | 11.9 | 0.6 | 15.2 | 3/8 | 9.5 | 0.53 | 13.5 | 0.07 | 1.8 |
| 6045 | 3/8 | 9.5 | 17/64 | 6.8 | 15/64 | 6 | 3/16 | 4.8 | 5/64 | 2 |
| 6137 | 1/2 | 12.7 | 21/64 | 8.3 | 3/16 | 4.8 | 1/4 | 6.4 | 5/64 | 2 |
| 6172 | 1/2 | 12.7 | 25/64 | 9.9 | 1/4 | 6.4 | 5/16 | 7.9 | 5/64 | 2 |
| 6041 | 3/8 | 9.5 | 17/64 | 6.8 | 0.196 | 5 | 3/16 | 4.8 | 5/64 | 2 |
| 6048 | 3/8 | 9.5 | 9/32 | 7.1 | 0.2 | 5.1 | 3/16 | 4.8 | 3/32 | 2.4 |
| 6075 | 1/2 | 12.7 | 9/32 | 7.1 | 1/4 | 6.4 | 3/16 | 4.8 | 3/32 | 2.4 |
| 6174 | 1/2 | 12.7 | 11/32 | 8.7 | 3/16 | 4.8 | 1/4 | 6.4 | 3/32 | 2.4 |
| 2975 | 7/16 | 11.1 | 11/32 | 8.7 | 1/4 | 6.4 | 1/4 | 6.4 | 3/32 | 2.4 |
| 6092 | 5/8 | 15.9 | 27/64 | 10.7 | 0.483 | 12.3 | 5/16 | 7.9 | 7/64 | 2.8 |
| 653 | 0.196 | 5 | 11/64 | 4.4 | 0.13 | 3.3 | 1/16 | 1.6 | 7/64 | 2.8 |
| 2643 | 5/8 | 15.9 | 11/32 | 8.7 | 17/64 | 6.8 | 15/64 | 6 | 7/64 | 2.8 |
| 607 | 1/2 | 12.7 | 7/16 | 11.1 | 5/16 | 7.9 | 5/16 | 7.9 | 1/8 | 3.2 |
| 6049 | 3/8 | 9.5 | 19/64 | 17.5 | 0.197 | 5 | 11/64 | 4.4 | 1/8 | 3.2 |
| 6067 | 7/16 | 11.1 | 3/8 | 9.5 | 1/4 | 6.4 | 1/4 | 6.4 | 1/8 | 3.2 |
| 6071 | 1/2 | 12.7 | 15/32 | 12.7 | 1/4 | 6.4 | 0.336 | 8.7 | 1/8 | 3.2 |
| 6079 | 1/2 | 12.7 | 7/16 | 11.1 | 19/64 | 7.5 | 5/16 | 7.9 | 1/8 | 3.2 |
| 6084 | 7/16 | 11.1 | 11/32 | 8.7 | 9/32 | 7.1 | 7/32 | 5.6 | 1/8 | 3.2 |
| 6085 | 27/64 | 10.7 | 5/16 | 7.9 | 0.26 | 6.6 | 3/16 | 4.8 | 1/8 | 3.2 |
| 6097 | 9/16 | 14.3 | 27/64 | 10.7 | 7/16 | 11.1 | 19/64 | 7.5 | 1/8 | 3.2 |
| 6171 | 1/2 | 12.7 | 3/8 | 9.5 | 1/4 | 6.4 | 1/4 | 6.4 | 1/8 | 3.2 |
| 6179 | 1/2 | 12.7 | 5/16 | 7.9 | 0.266 | 6.8 | 3/16 | 4.8 | 1/8 | 3.2 |
| 6076 | 15/32 | 11.9 | 29/64 | 11.5 | 5/16 | 7.9 | 5/16 | 7.9 | 9/64 | 3.6 |
| 6046 | 3/8 | 9.5 | 11/32 | 8.7 | 3/16 | 4.8 | 3/16 | 4.8 | 5/32 | 4 |
| 6047 | 3/8 | 9.5 | 1/2 | 12.7 | 0.302 | 7.7 | 11/32 | 8.7 | 5/32 | 4 |
| 6087 | 7/16 | 11.1 | 11/32 | 8.7 | 1/4 | 6.4 | 3/16 | 4.8 | 5/32 | 4 |
| 6081 | 1/2 | 12.7 | 7/16 | 11.1 | 3/8 | 9.5 | 1/4 | 6.4 | 3/16 | 4.8 |
| 6082 | 1/2 | 12.7 | 3/8 | 9.5 | 3/8 | 9.5 | 3/16 | 4.8 | 3/16 | 4.8 |
| 6083 | 7/16 | 11.1 | 5/16 | 7.9 | 5/16 | 7.9 | 1/8 | 3.2 | 3/16 | 4.8 |
| 6173 | 1/2 | 12.7 | 9/16 | 14.3 | 0.37 | 9.4 | 3/8 | 9.5 | 3/16 | 4.8 |
| 2652 | 7/8 | 22.2 | 9/16 | 14.3 | 1/2 | 12.7 | 3/8 | 9.5 | 0.187 | 4.8 |
| 609 | 5/8 | 15.9 | 19/32 | 15.1 | 0.443 | 11.3 | 3/8 | 9.5 | 7/32 | 5.6 |
| 6093 | 5/8 | 15.9 | 19/32 | 15.1 | 0.443 | 11.3 | 3/8 | 9.5 | 7/32 | 5.6 |
| 6180 | 5/8 | 15.9 | 23/32 | 18.3 | 7/16 | 11.3 | 1/2 | 12.7 | 7/32 | 5.6 |
| 6095 | 5/8 | 15.9 | 5/8 | 15.9 | 3/8 | 9.5 | 3/8 | 9.5 | 1/4 | 6.4 |
| 6088 | 5/8 | 15.9 | 15/16 | 23.8 | 7/16 | 11.1 | 1/2 | 12.7 | 7/16 | 11.1 |
| 6089 | 7/16 | 11.1 | 15/16 | 23.8 | 5/16 | 7.9 | 1/2 | 12.7 | 7/16 | 11.1 |
| 6167 | 7/16 | 11.1 | 31/32 | 24.6 | 1/4 | 6.4 | 1/2 | 12.7 | 15/32 | 11.9 |
