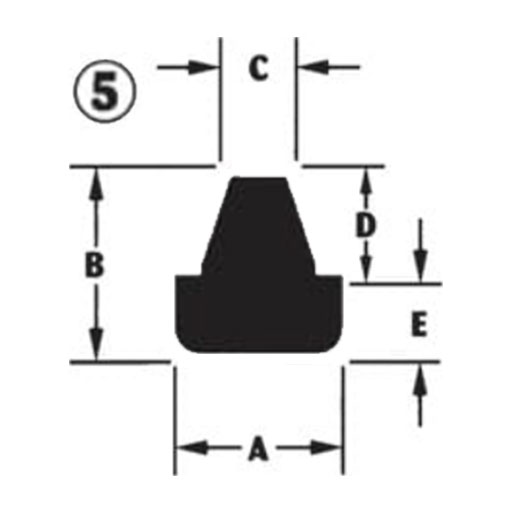

Bumper Model 5
| Part No. | A | B | C | D | E | |||||
| in | mm | in | mm | in | mm | in | mm | in | mm | |
| 6073 | 1/2 | 12.7 | 5/16 | 7.9 | 15/64 | 6 | 1/4 | 6.4 | 1/16 | 4.8 |
| 6170 | 1/2 | 12.7 | 21/64 | 8.3 | 1/4 | 6.4 | 1/4 | 6.4 | 5/64 | 2 |
| 6023 | 17/64 | 6.7 | 13/32 | 10.3 | 0.15 | 3.8 | 5/16 | 7.9 | 3/32 | 2.4 |
| 6123 | 17/64 | 6.7 | 13/32 | 10.3 | 0.14 | 3.6 | 5/16 | 7.9 | 3/32 | 2.4 |
| 6078 | 1/2 | 12.7 | 3/8 | 9.7 | 15/64 | 6 | 1/4 | 6.4 | 1/8 | 3.2 |
| 6091 | 5/8 | 15.9 | 1/2 | 12.7 | 0.507 | 12.9 | 3/8 | 9.5 | 1/8 | 3.2 |
| 6177 | 1/2 | 12.7 | 15/32 | 11.9 | 0.289 | 7.3 | 11/32 | 8.7 | 1/8 | 3.2 |
| 6077 | 1/2 | 12.7 | 1/2 | 12.7 | 0.289 | 7.3 | 11/32 | 8.7 | 5/32 | 4 |
