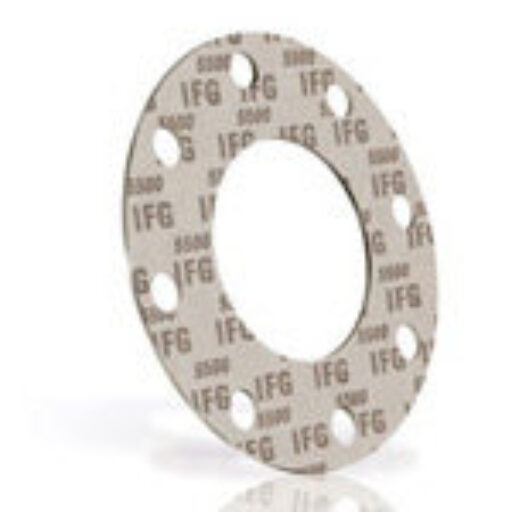

Style 5507
Product Code: Style-5507
You must be logged in.
Description
Benefits
Tighter seal
- Inorganic fiber gasketing offers excellent thermal stability with minimal weight loss
- Reduced creep relaxation and improved torque retention provide optimal sealability
Temperature resistant
- Non-oxidizing fibers withstand a continuous operating temperature of up to 550°F (290°C), and maximum spike of 800°F (425°C)
Media
- Water
- Saturated steam*
- Mild chemicals
- Mild alkalies
*Minimum recommended assembly stress = 4,800psi. Preferred assembly stress = 6,000-10,000psi. Gasket thickness of 1/16″ strongly preferred. Retorque the bolts/studs prior to pressurizing the assembly. For saturated steam above 150psig or superheated steam, consult Hanna Rubber Company.
Additional information
| Min. Temperature | -100°F (-73°C) |
|---|---|
| Continuous Max | +550°F (+288°C) |
| Max Temperature | 800°F (+427°C) |
| Max Pressure | 1200 psig (83 bar) |
| Maximum PxT 1/16 | 1200 psig (83 bar) |
| Maximum PxT 1/8 | 275,000 (°F x PSIG) |
| ASTM F104 | F712500A9B2E36K9L504M5(5) |
