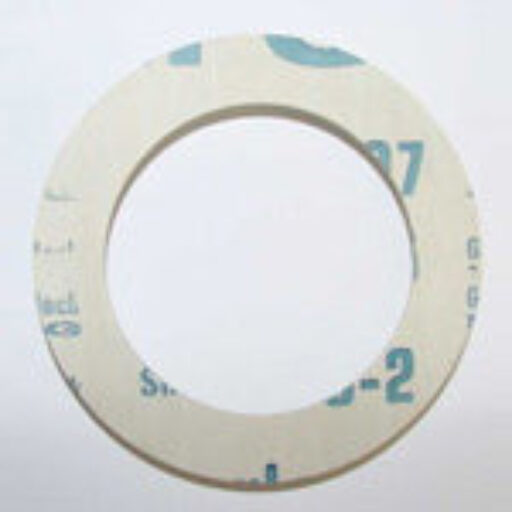

Style 5500
Product Code: Style-5500
You must be logged in.
Description
Benefits
Tighter seal
- Inorganic fiber gasketing offers excellent thermal stability with minimal weight loss
- Reduced creep relaxation and improved torque retention provide optimal sealability
Temperature resistant
- Non-oxidizing fibers withstand a continuous operating temperature of up to 550°F (290°C), and maximum spike of 800°F (425°C)
- IFG® 5500 has passed the Garlock Fire Test and is ABS Fire Safe Type Approved.
Media
- Water
- Aliphatic hydrocarbons
- Oils
- Gasoline
- Saturated steam*
- Inert gases
- Most refrigerants
*Minimum recommended assembly stress = 4,800psi. Preferred assembly stress = 6,000-10,000psi. Gasket thickness of 1/16″ strongly preferred. Retorque the bolts/studs prior to pressurizing the assembly. For saturated steam above 150psig or superheated steam, consult Hanna Rubber Company.
Additional information
| Min. Temperature | -100°F (-73°C) |
|---|---|
| Continuous Max | +550°F (+288°C) |
| Max Temperature | 800°F (+427°C) |
| Max Pressure | 1200 psig (83 bar) |
| Maximum PxT 1/16 | 400,000 (°F x PSIG) |
| Maximum PxT 1/8 | 275,000 (°F x PSIG) |
| ASTM F104 | F712103A9B4E23K7L501M4(4) |
