Transfer of refined fuels, oils and other petroleum products. Transfer hoses are designed for intermittent contact with refined fuels and must be drained after use

Temperature range:

–40°F to +180°F (–40°C to +82°C). Warning: Do not convey fuels over +120°F (+49°C).

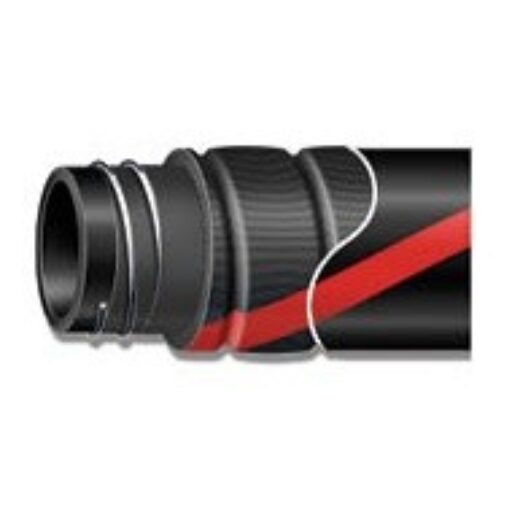

Tube:

Type C (Nitrile). Black.

Reinforcement:

Synthetic, high tensile textile with steel wire helix.

Cover:

Type A (Chloroprene). Black corrugated with red stripe.

Design Factor:

4:1

Standards:

Tube: ARPM (Class A) High oil–resistance.

Additional information

I.D. (In.)	2.00
O.D. (In.)	2.48
Max Working Pressure (Psi)	150
Burst Pressure (Psi)	450
Suction (In./Hg)	28
Min. Bend Radius (In.)	9.84
Weight Per Foot (Lbs.)	1.11
