FIBSDC-N1501-1-3/4″ x 7″ x 9/16″ x 135 DEG x 14″ x 5/16″
FIBSDC-N1501-1-3/4" x 7" x 9/16" x 135 DEG x 14" x 5/16"
Product Code: FIBSDC-N1501-1750-7000-05625-135-14000-03125
Options
FIBSDC-N1501-1750-7000-05625-120-14000-03125
FIBSDC-N1501-1750-7000-05625-135-14000-03125
FIBSDC-N1501-1750-7000-0750-130-12000-03125
FIBSDC-N1501-2000-7000-1000-130-12000-0250
FIBSDC-N1501-2250-7000-1000-130-14000-0250
FIBSDC-N1501-2500-6000-0875-111-12000-0375
FIBSDC-N1501-2500-6000-0875-127-12000-0375
FIBSDC-N1501-2500-6000-0875-130-12000-0375
Technical Data Sheet

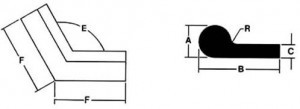

Drawing Item Identification:
A: Bulb in inches
B: OA width in inches
C: Tail thickness in inches
D: Optional customer specified hole if needed
E. Specified degree angle
F: Side length in inches
R: Radius in inches
Additional information
| (A) Bulb in inches | 1-3/4" |
|---|---|
| (B) OA Width in Inches | 7" |
| (C) Tail Thickness in Inches | 9/16" |
| (D) Optional Customer Specified Hole if Needed | – |
| (E) Specified Degree Angle | 135 DEG |
| (F) Side Length in Inches | 14" |
| (R) Radius in Inches | 5/16" |
| Tensile Strength (Die C ASTM D412) | 2500 psi (min) |
| Elongation at Rupture (ASTM D412) | 400% (min) |
| 300% Modulus (ASTM D412) | 900 psi (min) |
| Durometer Hardness, Shore Type A (ASTM D2240) | 60 – 70 |
| Water Absorption (70 Hrs. @ 212°F ASTM D471) | 10% by weight (max) |
| Compression Set (ASTM D395 Method B 22 Hrs/ @ 158°F) | 30% (max) |
| Tensile Strength After Oxygen Bomb Aging (ASTM F572) | 80% (min) of tensile strength |
| Low Temperature Brittleness (ASTM D2137 Method A, 9.3.2) | Non-Brittle after 3' @ -25°C |
