        Joint Sealant / Expanded PTFE Gasket Sheet Material 24SH
        Categories
        Product Code: GASKET-SHEET-MATERIAL-24SH

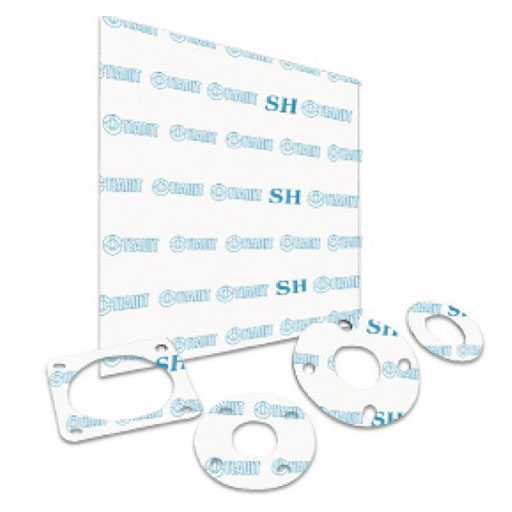

        24SH gasket sheet is manufactured by expanding 100% virgin PTFE using a proprietary process that produces a uniform and highly fibrillated microstructure with equal tensile strength in all directions.

        Technical Data Sheet

        Construction

        24SH gasket sheet is manufactured by expanding 100% virgin PTFE using a proprietary process that produces a uniform and highly fibrillated microstructure with equal tensile strength in all directions. The resulting product exhibits characteristics significantly different than conventional PTFE sheet. This style is much softer and more flexible than regular PTFE sheet and thus conforms easily to irregular and rough surfaces. In addition, the material is easier to compress and minimizes creep and cold flow.

        Application

        TEADIT ® 24SH gasket material complies to FDA regulations for food contact and EU 1935/2004. 24SH is an all purpose gasket sheet that can replace all other types of PTFE sheet. It will seal all aggressive chemicals over the entire 0-14 pH range, except for molten alkali metals and elemental fluorine. Made from 100% virgin PTFE, it not only resists chemical attack, but it will not contaminate or discolor end products.

        Expanded PTFE sheet material is common for applications in the following industries:

        • Distillers
        • Pharmaceutical
        • Iron and Steel Manufacturing
        • Petrochemical
        • General Chemical
        • Pulp and Paper
        • Food and Beverage
        • Power Generatin
        • Marine

        Advantages

        Universally employable gasket sheet for all applications. It is suitable for all types of flanges, nearly all media, a wide temperature range and for applications with the toughest demands on purity. It is inherently clean and non-toxic. Gaskets of multi-directionally expanded PTFE have exceptional mechanical strength which allows operation with minimal creep at elevated temperatures. Gaskets cut from TEADIT ® 24SH are dimensionally stable, i.e. they do not get wider when compressed. This allows narrow flange faces to be sealed safely. TEADIT ® 24SH is quick and simple to install. The used gasket can be removed easily and without residue.

        Approvals

        • WRC
        • Blow-Out Test VDI 2200
        • FDA
        • Germanischer Lloyd
        • BAM
        • EN 1935/2004
        • TA-Luft
        • AREVA

        Additional information

        Minimum Temperature

        -450°F (-268°C)

        Maximum Service Temperature

        500°F (260°C)

        Short Term Maximum Temperature

        600° F (315° C)

        Pressure

        Vacuum up to 2900 psi (200 bar)

        Color

        White

        pH

        0-14 (except molten alkali metals and elemental fluorine at high temperature and pressure)

        Density

        0.9 g/cm3

        Compressibility - ASTM F 36 M

        45%

        Recovery - ASTM F 36 M

        14%

        Tensile Strength Across Grain - ASTM F152

        >20 MPa

        Stress Retention- DIN 52913

        15 MPa

        Specific Leakage Rate L- VDI 2440 / TA LUFT

        2.6 X 10-7
