Achieving a leak-free flange connection is essential in any industrial piping system. One of the most important factors in flange reliability is proper bolt tightening. Uneven gasket compression, often caused by improper tightening, can result in leaks, downtime, and potential safety hazards. At Hanna Rubber, we emphasize the importance of following best practices when installing and tightening flange bolts to ensure long-lasting, secure connections.
ANSI Bolt Tightening Sequence and Best Practices

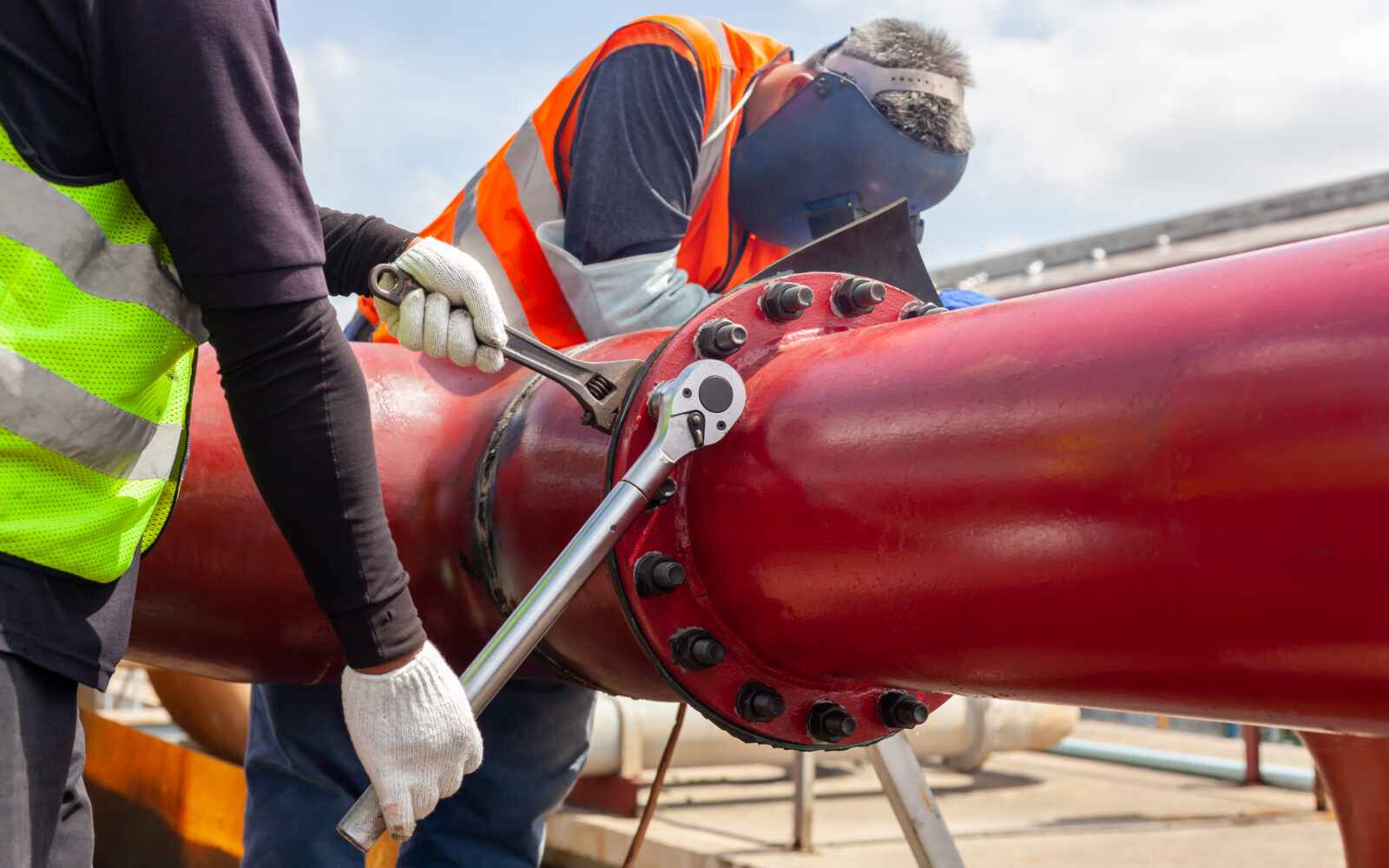

The most effective method for tightening flange bolts is to use a star or criss-cross pattern, particularly when working with ANSI flanges. This sequence ensures uniform pressure across the flange face and even gasket compression. Bolts should never be tightened to full torque in a single pass. Instead, staged tightening should be used to gradually bring each bolt to the final torque value.
A standard three- or four-pass approach is recommended. In the first pass, tighten all bolts to approximately 30% of the final torque using the criss-cross pattern. In the second pass, increase to 60%. The third pass brings all bolts to 100% of the final value. An optional fourth pass can be used to verify torque in a clockwise circular sequence, confirming that no bolts have relaxed due to gasket compression.
For high-pressure or high-temperature systems, it may be necessary to re-torque bolts after initial pressurization or after the system has stabilized—typically within 4 to 24 hours. This additional step ensures long-term gasket reliability in challenging service environments.
Important Factors to Consider in Flange Bolt Tightening
Several key elements must be accounted for during flange installation:
- Bolt size and class impact torque requirements, especially across ANSI pressure classes such as 150 or 300.
- Torque wrench calibration is critical. Tools should be calibrated regularly—at least annually—to ensure accuracy and prevent under- or over-torquing.
- Gasket compression must be uniform around the entire bolt circle. Selecting the correct gasket material for the system’s pressure, temperature, and media is essential for achieving a proper seal.
- Bolt material also plays a role. Materials like carbon steel, stainless steel, or alloy steel require different torque values and may have specific lubrication needs.
- Lubrication reduces friction and improves consistency. For stainless steel bolts, anti-seize compound should be applied to prevent galling.
- Thermal effects such as expansion and contraction can influence bolt preload. It’s important to account for service temperature when determining torque values.
- Service conditions may warrant more advanced tightening methods. For critical applications, hydraulic tensioning or ultrasonic bolt stress verification may be used in place of traditional torque wrenches.
Frequently Asked Questions
Why is the criss-cross tightening pattern necessary?
It distributes clamping force evenly across the gasket, preventing leaks and uneven compression.
How often should torque wrenches be calibrated?
Wrenches should be calibrated at least once per year or according to the manufacturer’s guidelines.
Should bolts be re-tightened after the system is pressurized?
Yes, particularly in high-pressure or high-temperature systems. Re-torquing helps accommodate gasket relaxation and ensures long-term sealing.
Can over-tightening lead to leaks?
Yes. Over-compression can damage the gasket, compromising its ability to seal and potentially leading to flange or bolt damage.
What is ANSI B16.5?
ANSI B16.5 outlines specifications for flange dimensions, bolt sizes, torque guidelines, pressure classes, and materials, providing the foundation for proper flange assembly in industrial piping systems.
Seal with Confidence Using Proper Techniques
Flange integrity starts with the right approach to bolt tightening. By following ANSI standards, applying torque in controlled stages, and selecting the proper materials and tools, you can avoid common pitfalls and build a more reliable system. At Hanna Rubber, we provide the products and expertise you need to ensure every connection is secure and leak-free.
Contact Hanna Rubber today for support with flange assembly, gasket selection, and tightening procedures tailored to your specific application.
